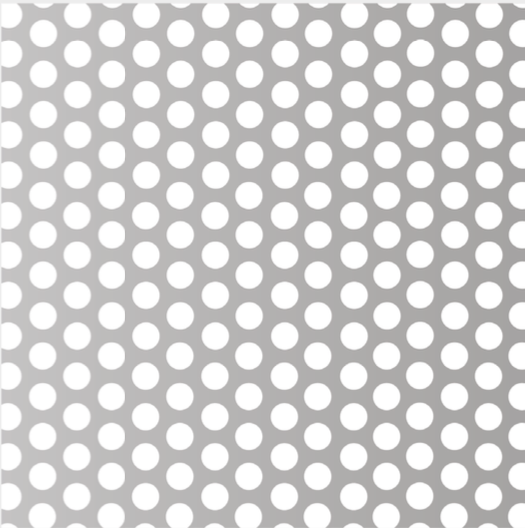

Artemis - Open Area 40%

$0.00
Add To Cart

RPT40

Profile: Artemis
Material:
Aluminum
Surface Finish:
Powder Coat or Anodise
Max Width:
1500 mm
Max Length:
3600 mm
Open Area:
40%
Weight:
4.9 kg/m2
Availability:
Custom Made
Stock (3.0mm 2400x1200)
Thickness: 1.2 - 4.0mm

Applications:
Facades, Balustrade lnfills, Decorative Panels, Ceiling Tiles, Cladding.

Attachment Methods:
Perftech supplies fastening solutions for our perforated and expanded privacy screens and other products in the architectural markets.  These options include all aluminium pin and body rivets and stainless steel SS316 coach screws, that are fitted with a neoprene spacer/washer which separates and acts as a barrier between the two different metals or touching. This is particularly important when fixing architectural sun shading screens to different metal sub-structures, where corrosion and cross contamination from material interference will eventually cause corrosion between both materials and costly and dangerous failures. Perftech can supply pre-powder coated fixings to suit the panel colour chosen by the architect, designer, engineer or building owner. This saves time and costs at the end of the installation with unnecessary touch-ups on the fastened area.

Please speak with our sales team to discuss your fixing requirements for your next project  sales@perftech.co.nz  or freephone 0800 NZ MESH.

Extra Notes:
*Open area & weight calculations are based on 3.0mm Aluminium. Other materials and thickness can be manufactured upon request. Perftech can punch sheets up to 1500mm widths, however 1200mm is recommended to reduce transport costs and is generally more readily available.

Custom made to order.
Contact the sales team at :
0800 NZMESH
sales@perftech.co.nz
